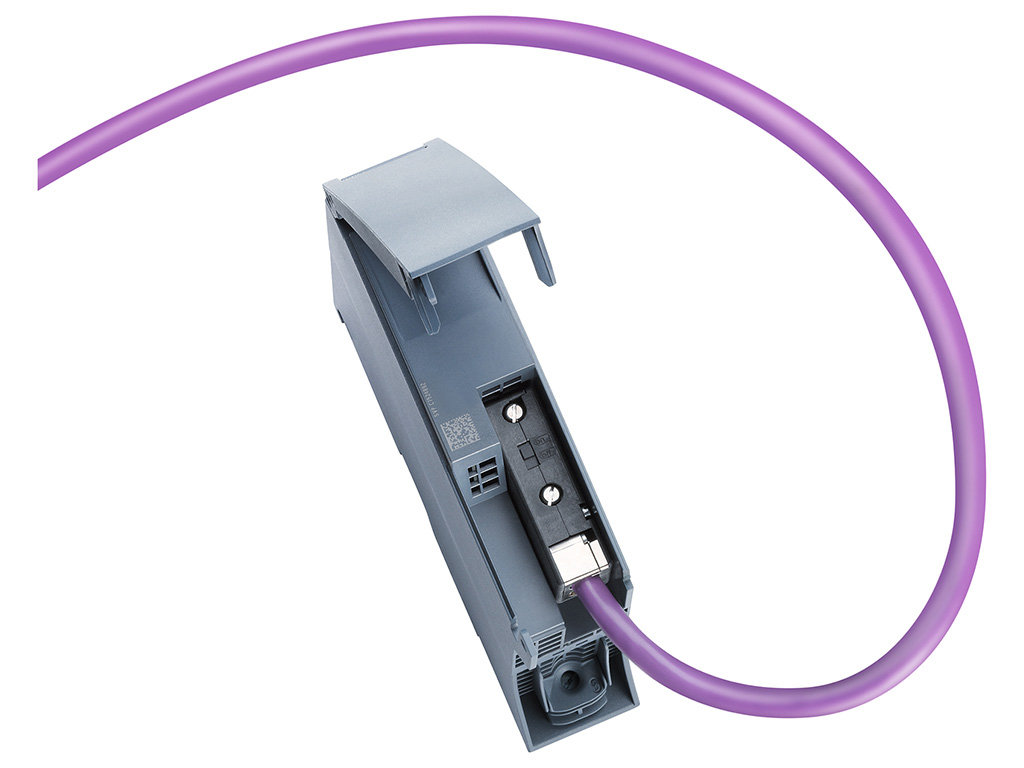

Communication module CM 1542-5 for connection of S7-1500 to PROFIBUS DP, DPV1 master or DP slave, S7 and PG/OP communication, data record routing, time-of-day synchronization, Diagnostics

6GK7542-5DX00-0XE0 là mô đun mở rộng giao tiếp – truyền thông cho PLC S7-1500 do hãng SIEMENS phát triển & sản xuất với thương hiệu SIMATIC thuộc họ S7-1500. CM 1542-5 SIMATIC S7-1500 SIEMENS 6GK7542-5DX00-0XE0 được SIEMENSIM.COM phát triển và phân phối rộng rãi trên thị trường Việt Nam. Nếu quý khách hàng đang có nhu cầu cần tư vấn hay mua 6GK7542-5DX00-0XE0 thì hãy liên hệ SIEMENS INDUSTRY MALL để được hỗ trợ một cách tận tâm, nhanh chóng và hiệu quả nhé.

Mục lục

Tóm tắt thông số kỹ thuật 6GK7542-5DX00-0XE0

Mã sản phẩm	6GK7542-5DX00-0XE0
Dòng sản phẩm	SIMATIC S7-1500, CM 1542-5
Hãng sản xuất	SIEMENS
Kích thước (RxCxS)	35x142x129 mm
Trọng lượng	400 g

Chi tiết thông số kỹ thuật 6GK7542-5DX00-0XE0

Tải về datasheet (pdf): Tại đây!

transfer rate
transfer rate
● at the 1st interface / acc. to PROFIBUS	9.6 kbit/s … 12 Mbit/s
interfaces
number of interfaces / acc. to Industrial Ethernet	0
number of electrical connections
● at the 1st interface / acc. to PROFIBUS	1
type of electrical connection
● at the 1st interface / acc. to PROFIBUS	9-pin Sub-D socket (RS485)
supply voltage, current consumption, power loss
type of voltage / of the supply voltage	DC
supply voltage / 1 / from backplane bus	15 V
relative symmetrical tolerance / at DC
● at 15 V	3 %
consumed current
● from backplane bus / at DC / at 15 V / typical	0.2 A
power loss [W]	3 W
ambient conditions
ambient temperature
● for vertical installation / during operation	0 … 40 °C
● for horizontally arranged busbars / during operation	0 … 60 °C
● during storage	-40 … +70 °C
● during transport	-40 … +70 °C
relative humidity
● at 25 °C / without condensation / during operation / maximum	95 %
protection class IP	IP20
design, dimensions and weights
module format	Compact module S7-1500 single width
width	35 mm
height	142 mm
depth	129 mm
net weight	0.4 kg
fastening method
● S7-1500 rail mounting	Yes
product features, product functions, product components / general
number of units
● per CPU / maximum	8
● note	depending on CPU type
performance data / open communication
number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum	30
data volume
● as user data per connection / for open communication / by means of SEND/RECEIVE blocks / maximum	240 byte
performance data / PROFIBUS DP
service / as DP master
● DPV1	Yes
number of DP slaves
● on DP master / operable	125
data volume
● of the address range of the inputs / as DP master / total	8192 byte
● of the address range of the outputs / as DP master / total	8192 byte
● of the address range of the inputs / per DP slave	244 byte
● of the address range of the outputs / per DP slave	244 byte
service / as DP slave
● DPV0	Yes
● DPV1	Yes
data volume
● of the address range of the inputs / as DP slave / total	240 byte
● of the address range of the outputs / as DP slave / total	240 byte
performance data / S7 communication
number of possible connections / for S7 communication
● maximum	48; depending on the system upper limit
performance data / multi-protocol mode
number of active connections / with multi-protocol mode	48
performance data / telecontrol
protocol / is supported
● TCP/IP	No
product functions / management, configuration, engineering
configuration software
● required	STEP 7 Professional V12 (TIA Portal) or higher
identification & maintenance function
● I&M0 – device-specific information	Yes
● I&M1 – higher level designation/location designation	Yes
product functions / diagnostics
product function / web-based diagnostics	Yes; via S7-1500 CPU
product functions / time
product function / pass on time synchronization	Yes
standards, specifications, approvals / hazardous environments
certificate of suitability / CCC / for hazardous zone according to GB standard	Yes
