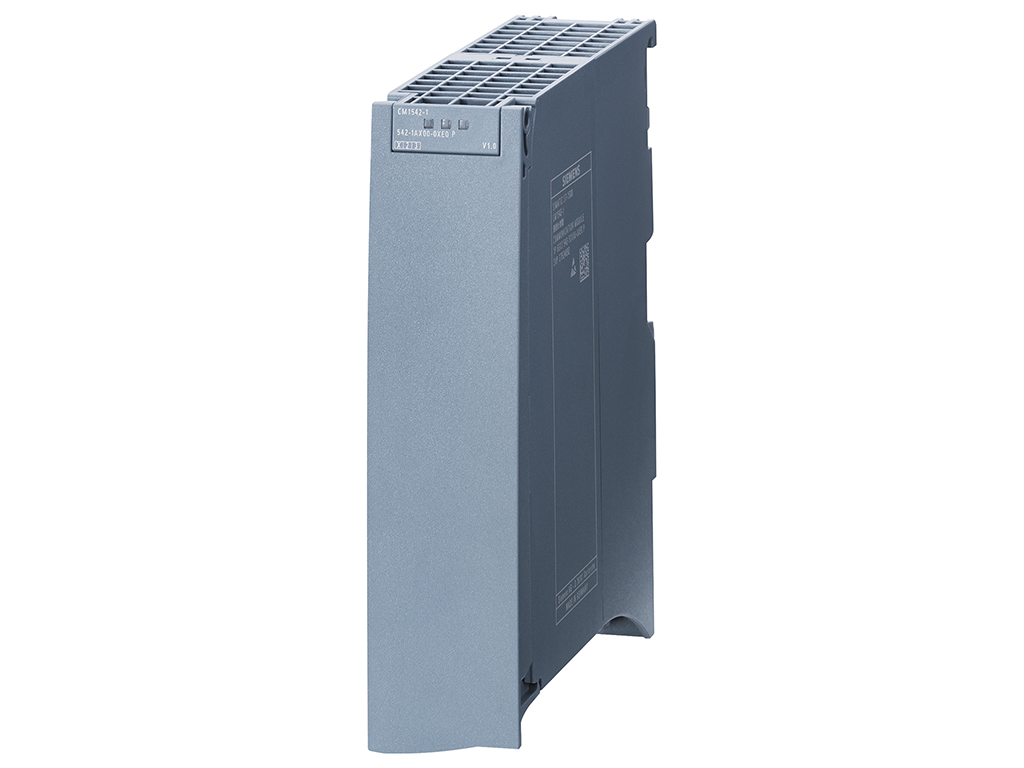

Communication module CM 1542-1 for connection of S7-1500 to PROFINET as IO controller: TCP/IP, ISO-on-TCP, UDP, S7 communication, IP broadcast Multicast, SNMPV1, time-of-day synchronization via NTP, 2xRJ45 (10/100 Mbit)
6GK7542-1AX00-0XE0 là mô đun mở rộng giao tiếp – truyền thông cho PLC S7-1500 do hãng SIEMENS phát triển & sản xuất với thương hiệu SIMATIC thuộc họ S7-1500. CM 1542-1 SIMATIC S7-1500 SIEMENS 6GK7542-1AX00-0XE0 được SIEMENSIM.COM phát triển và phân phối rộng rãi trên thị trường Việt Nam. Nếu quý khách hàng đang có nhu cầu cần tư vấn hay mua 6GK7542-1AX00-0XE0 thì hãy liên hệ SIEMENS INDUSTRY MALL để được hỗ trợ một cách tận tâm, nhanh chóng và hiệu quả nhé.
Tóm tắt thông số kỹ thuật 6GK7542-1AX00-0XE0
| Mã sản phẩm | 6GK7542-1AX00-0XE0 |
| Dòng sản phẩm | SIMATIC S7-1500, CM 1542-1 |
| Hãng sản xuất | SIEMENS |
| Cổng | 2 cổng RJ45 |
| Tốc độ truyền | 10 … 100 Mbit/s |
| Nguồn cung cấp | DC |
| Kích thước (RxCxS) | 35x142x129 mm |
| Trọng lượng | 400 g |
Chi tiết thông số kỹ thuật 6GK7542-1AX00-0XE0
Tải về datasheet (pdf): Tại đây!
| transfer rate | |
| transfer rate | |
| ● at the 1st interface | 10 … 100 Mbit/s |
| interfaces | |
| number of interfaces / acc. to Industrial Ethernet | 1 |
| number of electrical connections | |
| ● at the 1st interface / acc. to Industrial Ethernet | 2 |
| type of electrical connection | |
| ● at the 1st interface / acc. to Industrial Ethernet | RJ45 port |
| supply voltage, current consumption, power loss | |
| type of voltage / of the supply voltage | DC |
| supply voltage / 1 / from backplane bus | 15 V |
| relative symmetrical tolerance / at DC | |
| ● at 15 V | 3 % |
| consumed current | |
| ● from backplane bus / at DC / at 15 V / typical | 0.22 A |
| power loss [W] | 3.3 W |
| ambient conditions | |
| ambient temperature | |
| ● for vertical installation / during operation | 0 … 40 °C |
| ● for horizontally arranged busbars / during operation | 0 … 60 °C |
| ● during storage | -40 … +70 °C |
| ● during transport | -40 … +70 °C |
| relative humidity | |
| ● at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| design, dimensions and weights | |
| module format | Compact module S7-1500 single width |
| width | 35 mm |
| height | 142 mm |
| depth | 129 mm |
| net weight | 0.4 kg |
| fastening method | |
| ● S7-1500 rail mounting | Yes |
| product features, product functions, product components / general | |
| number of units | |
| ● per CPU / maximum | 8 |
| ● note | depending on CPU type |
| performance data / open communication | |
| number of possible connections / for open communication | |
| ● by means of T blocks / maximum | 64; depending on the system upper limit |
| data volume | |
| ● as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum | 65536 byte |
| number of Multicast stations | 6 |
| performance data / S7 communication | |
| number of possible connections / for S7 communication | |
| ● maximum | 64; depending on the system upper limit |
| performance data / multi-protocol mode | |
| number of active connections / with multi-protocol mode | 64 |
| performance data / PROFINET communication / as PN IO controller | |
| product function / PROFINET IO controller | Yes |
| number of PN IO devices / on PROFINET IO controller / operable / total | 128 |
| number of PN IO IRT devices / on PROFINET IO controller / operable | 64 |
| number of external PN IO lines / with PROFINET / per rack | 10 |
| data volume | |
| ● as user data for input variables / as PROFINET IO controller / maximum | 8 Kibyte |
| ● as user data for output variables / as PROFINET IO controller / maximum | 8 Kibyte |
| ● as user data for input variables per PN IO device / as PROFINET IO controller / maximum | 1433 byte |
| ● as user data for output variables per PN IO device / as PROFINET IO controller / maximum | 1433 byte |
| ● as user data for input variables per PN IO device / for each sub-module as PROFINET IO controller / maximum | 256 byte |
| ● as user data for output variables per PN IO device / for each sub-module as PROFINET IO controller / maximum | 256 byte |
| performance data / PROFINET communication / as PN IO device | |
| product function / PROFINET IO device | Yes |
| data volume | |
| ● as user data for input variables / as PROFINET IO device / maximum | 8192 byte |
| ● as user data for output variables / as PROFINET IO device / maximum | 8192 byte |
| ● as user data for input variables / for each sub-module as PROFINET IO device | 256 byte |
| ● as user data for output variables / for each sub-module as PROFINET IO device | 256 byte |
| ● as user data for the consistency area for each sub-module | 256 byte |
| number of submodules / per PROFINET IO-Device | 32 |
| performance data / telecontrol | |
| protocol / is supported | |
| ● TCP/IP | Yes |
| product functions / management, configuration, engineering | |
| product function / MIB support | Yes |
| protocol / is supported | |
| ● SNMP v1 | Yes |
| ● DCP | Yes |
| ● LLDP | Yes |
| configuration software | |
| ● required | STEP 7 Professional V14 (TIA Portal) or higher |
| identification & maintenance function | |
| ● I&M0 – device-specific information | Yes |
| ● I&M1 – higher level designation/location designation | Yes |
| product functions / diagnostics | |
| product function / web-based diagnostics | Yes; via S7-1500 CPU |
| product functions / switch | |
| product feature / switch | Yes |
| product function | |
| ● switch-managed | No |
| ● with IRT / PROFINET IO switch | Yes |
| ● configuration with STEP 7 | Yes |
| product functions / routing | |
| service / routing / note | IP routing up to 1 Mbps |
| product function | |
| ● static IP routing | Yes |
| ● static IP routing IPv6 | No |
| ● dynamic IP routing | No |
| ● dynamic IP routing IPv6 | No |
| protocol / is supported | |
| ● RIP v1 | No |
| ● RIPv2 | No |
| ● RIPnG for IPv6 | No |
| ● OSPFv2 | No |
| ● OSPFv3 for IPv6 | No |
| ● VRRP | No |
| ● VRRP for IPv6 | No |
| ● BGP | No |
| ● PPP | No |
| ● PPoE via DSL | No |
| product functions / redundancy | |
| product function | |
| ● ring redundancy | Yes |
| ● redundancy manager | Yes |
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
| product functions / security | |
| product function | |
| ● switch-off of non-required services | Yes |
| ● blocking of communication via physical ports | No |
| ● log file for unauthorized access | No |
| product functions / time | |
| product function / SICLOCK support | Yes |
| product function / pass on time synchronization | Yes |
| protocol / is supported | |
| ● NTP | Yes |
| standards, specifications, approvals / hazardous environments | |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes |
