Communications processor CP 343-1 Lean for connection of SIMATIC S7-300 to Industrial Ethernet via TCP/IP and UDP, Multicast, SEND/RECEIVE with and without RFC1006, Fetch/ Write, S7 communication (server), PROFINET IO device integrated 2-port switch ERTEC 200, Module replacement without PG, SNMP diagnostics, initialization via LAN, 2x RJ45 connection for LAN with 10/100 Mbit/s

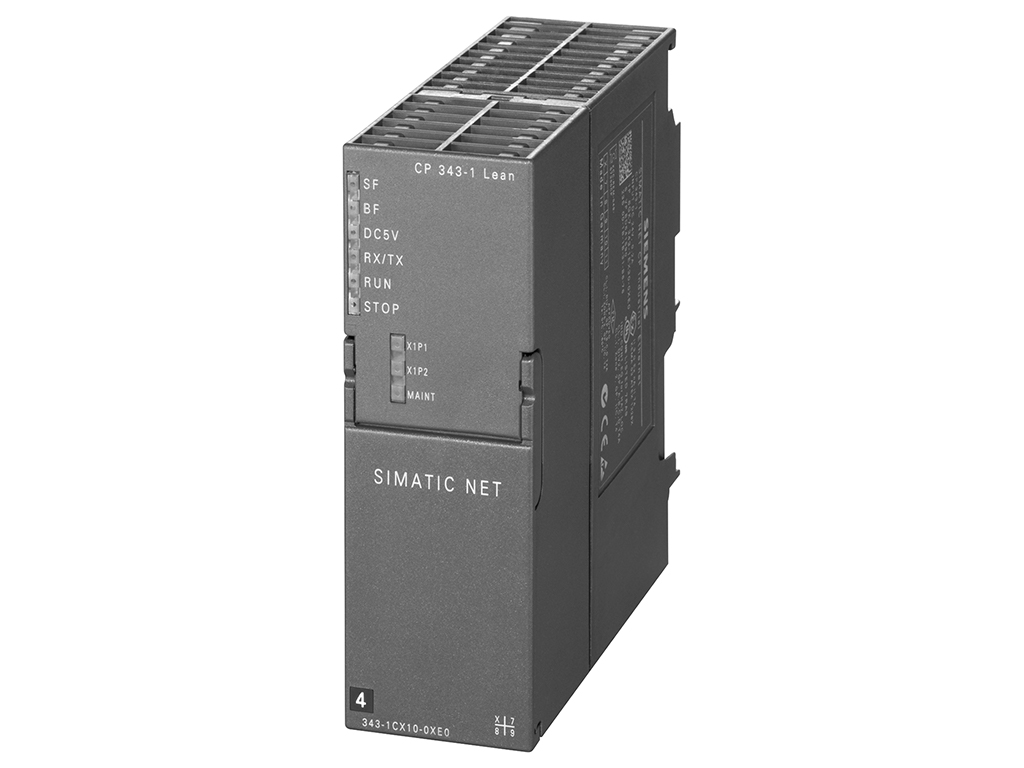

6GK7343-1CX10-0XE0 là mô đun mở rộng truyền thông cho PLC S7-300 (CPU) do hãng SIEMENS phát triển & sản xuất với thương hiệu SIMATIC thuộc họ S7-300. 343-1 Lean SIMATIC NET SIEMENS 6GK7343-1CX10-0XE0 được SIEMENSIM.COM phát triển và phân phối rộng rãi trên thị trường Việt Nam. Nếu quý khách hàng đang có nhu cầu cần tư vấn hay mua 6GK7343-1CX10-0XE0 thì hãy liên hệ SIEMENS INDUSTRY MALL để được hỗ trợ một cách tận tâm, nhanh chóng và hiệu quả nhé.

Mục lục

Tóm tắt thông số kỹ thuật 6GK7343-1CX10-0XE0

Mã sản phẩm	6GK7343-1CX10-0XE0
Dòng sản phẩm	SIMATIC S7-300, CP 343-1 Lean
Hãng sản xuất	SIEMENS
Truyền thông	LAN 10 … 100 Mbit/s
Nguồn cung cấp	Nguồn ngoài: 24 VDC Nguồn từ backplane bus: 5 VDC
Kích thước (RxCxS)	40x125x120 mm
Trọng lượng	220 g

Chi tiết thông số kỹ thuật 6GK7343-1CX10-0XE0

Tải về datasheet (pdf): Tại đây!

transfer rate
transfer rate
● at the 1st interface	10 … 100 Mbit/s
interfaces
number of interfaces / acc. to Industrial Ethernet	2
number of electrical connections
● at the 1st interface / acc. to Industrial Ethernet	2
● for power supply	1
type of electrical connection
● of Industrial Ethernet interface	RJ45 port
● at the 1st interface / acc. to Industrial Ethernet	RJ45 port
type of electrical connection
● for power supply	2-pole plugable terminal block
supply voltage, current consumption, power loss
type of voltage / of the supply voltage	DC
supply voltage / 1 / from backplane bus	5 V
supply voltage	24 V
supply voltage / external	24 V
supply voltage / external / at DC / rated value	24 V
relative positive tolerance / at DC / at 24 V	20 %
relative negative tolerance / at DC / at 24 V	15 %
consumed current
● from backplane bus / at DC / at 5 V / typical	0.2 A
● from external supply voltage / at DC / at 24 V / typical	0.16 A
● from external supply voltage / at DC / at 24 V / maximum	0.2 A
power loss [W]	5.8 W
ambient conditions
ambient temperature
● for vertical installation / during operation	0 … 40 °C
● for horizontally arranged busbars / during operation	0 … 60 °C
● during storage	-40 … +70 °C
● during transport	-40 … +70 °C
relative humidity
● at 25 °C / without condensation / during operation / maximum	95 %
protection class IP	IP20
design, dimensions and weights
module format	Compact module S7-300 single width
width	40 mm
height	125 mm
depth	120 mm
net weight	0.22 kg
fastening method
● S7-300 rail mounting	Yes
performance data / open communication
number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum	8
data volume
● as user data per ISO on TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum	8 Kibyte
● as user data per TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum	8 Kibyte
● as user data per UDP connection / for open IE communication / by means of SEND/RECEIVE blocks / maximum	2 Kibyte
number of Multicast stations	8
performance data / S7 communication
number of possible connections / for S7 communication
● maximum	4
service
● of SIMATIC communication / as server	Yes
performance data / multi-protocol mode
number of active connections / with multi-protocol mode	12
performance data / PROFINET communication / as PN IO controller
product function / PROFINET IO controller	No
performance data / PROFINET communication / as PN IO device
product function / PROFINET IO device	Yes
data volume
● as user data for input variables / as PROFINET IO device / maximum	512 byte
● as user data for output variables / as PROFINET IO device / maximum	512 byte
● as user data for input variables / for each sub-module as PROFINET IO device	240 byte
● as user data for output variables / for each sub-module as PROFINET IO device	240 byte
● as user data for the consistency area for each sub-module	240 byte
number of submodules / per PROFINET IO-Device	32
performance data / telecontrol
protocol / is supported
● TCP/IP	Yes
product functions / management, configuration, engineering
product function / MIB support	Yes
protocol / is supported
● SNMP v1	Yes
● DCP	Yes
● LLDP	Yes
configuration software
● required	STEP 7 V5.4 or higher / STEP 7 Professional V11 (TIA Portal) or higher
identification & maintenance function
● I&M0 – device-specific information	Yes
● I&M1 – higher level designation/location designation	Yes
product functions / diagnostics
product function / web-based diagnostics	Yes
product functions / switch
product feature / switch	Yes
product function
● switch-managed	No
● with IRT / PROFINET IO switch	No
● configuration with STEP 7	Yes
product functions / redundancy
product function
● ring redundancy	Yes
● redundancy manager	No
protocol / is supported / Media Redundancy Protocol (MRP)	Yes
product functions / security
product function
● password protection for Web applications	No
● ACL – IP-based	Yes
● ACL – IP-based for PLC/routing	No
● switch-off of non-required services	Yes
● blocking of communication via physical ports	Yes
● log file for unauthorized access	No
product functions / time
product function / SICLOCK support	Yes
product function / pass on time synchronization	Yes
protocol / is supported
● NTP	Yes
standards, specifications, approvals / hazardous environments
certificate of suitability / CCC / for hazardous zone according to GB standard	Yes
