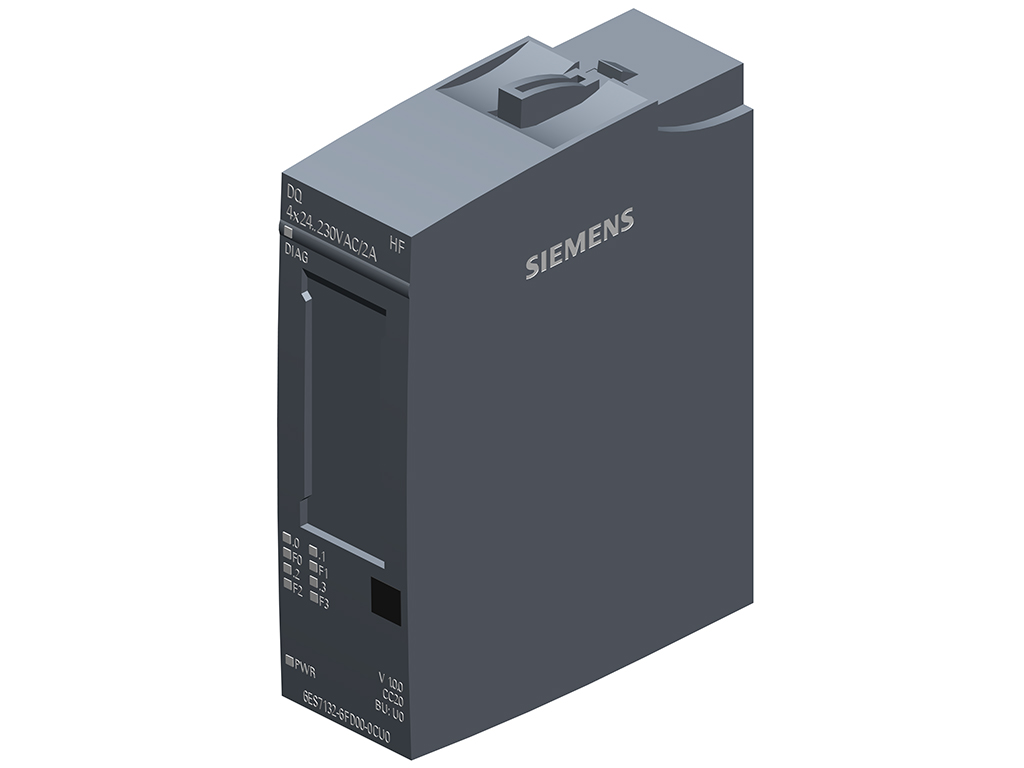

SIMATIC ET 200SP, digital output module DQ 4x 24..230V AC/2A HF packaging unit: 1 piece, two alternative modes: DQ and power control, fits to BU-Type U0, color code CC20, channel diagnosis

6ES7132-6FD00-0CU0 là module mở rộng đầu ra số (digital output module) cho CPU ET200SP được hãng SIEMENS sản xuất & phát triển với thương hiệu SIMATIC. DQ 4×24…230 VAC/2A HF SIMATIC ET 200SP 6ES7132-6FD00-0CU0 được SIEMENSIM phát triển và phân phối rộng rãi trên thị trường Việt Nam. Nếu quý khách hàng đang có nhu cầu cần tư vấn, báo giá hay mua 6ES7132-6FD00-0CU0 thì hãy liên hệ Siemens Industry Mall để được hỗ trợ một cách tận tâm, nhanh chóng và hiệu quả nhé.

Mục lục

Tóm tắt thông số kỹ thuật 6ES7132-6FD00-0CU0

Mã sản phẩm	6ES7132-6FD00-0CU0
Dòng sản phẩm	SIMATIC ET 200SP, DQ 4×24 … 230 V AC/2 A HF
Hãng sản xuất	SIEMENS
Số lượng đầu ra số	DQ 4x 24..230V AC/2A HF
Nguồn cung cấp	24 V DC (19.2 – 28.8 V DC)
Kích thước (RxCxS)	20 x 73 x 58 mm
Trọng lượng	50 g

Chi tiết thông số kỹ thuật 6ES7132-6FD00-0CU0

Tải về datasheet (pdf): Tại đây!

General information
Product type designation	DQ 4×24 … 230 V AC/2 A HF
HW functional status	From FS03
Firmware version
● FW update possible	Yes
usable BaseUnits	BU type U0
Color code for module-specific color identification plate	CC20
Product function
● I&M data	Yes; I&M0 to I&M3
● Isochronous mode	No
Engineering with
● STEP 7 TIA Portal configurable/integrated from version	V14
● STEP 7 configurable/integrated from version	STEP 7 V5.5 or higher
● PROFIBUS from GSD version/GSD revision	GSD as of Revision 5
● PROFINET from GSD version/GSD revision	GSDML V2.3
Operating mode
● DQ	Yes
● DQ with energy-saving function	Yes
● PWM	No
● Oversampling	No
● MSO	No
● Phase control	Yes; Control area: 8.5 … 100% of the phase angle
● Trailing-edge phase	No
● Half-wave	Yes
● Full-wave	Yes
Supply voltage
Rated value (AC)	230 V; 47 … 63 Hz, max. rate of change of frequency 1 mHz/s
permissible range, lower limit (AC)	20.4 V
permissible range, upper limit (AC)	264 V
Input current
Current consumption (rated value)	8 mA; without load
Output voltage
Rated value (AC)	230 V; 24V AC to 230V AC
Power loss
Power loss, typ.	9 W; Active power, load voltage 230 V, all outputs loaded with 2 A, 50 Hz
Address area
Address space per module
● Inputs	+ 1 byte for QI information
● Outputs	8 byte
Hardware configuration
Automatic encoding	Yes
● Mechanical coding element	Yes
Selection of BaseUnit for connection variants
● 1-wire connection	BU type U0
● 2-wire connection	BU type U0
● 3-wire connection	BU type U0 + Potential distributor module
Digital outputs
Number of digital outputs	4
Current-sinking	No
Current-sourcing	Yes
Digital outputs, parameterizable	Yes
Short-circuit protection	No; external fusing necessary
Open-circuit detection	Yes; channel by channel
● Response threshold, typ.	1 mA; 40 V AC or more
Overload protection	No; A miniature fuse with 10 tripping current and tripping characteristic “quick response” must be provided in the module supply
Controlling a digital input	Yes
Switching capacity of the outputs
● with resistive load, max.	2 A; Max. 4 A, see additional description in manual
● with inductive load, max.	2 A
● on lamp load, max.	100 W; Tungsten rating in accordance with UL; for thermistors with higher power ratings, see the notes in the manual
Output voltage
● for signal “1”, min.	20.4 V
Output current
● for signal “1” rated value	2 A
● for signal “1” permissible range, min.	10 mA
● for signal “1” permissible range, max.	4 A; note derating data in the manual
● for signal “0” residual current, max.	3 mA
Output delay with resistive load
● “0” to “1”, max.	40 ms; 2 AC cycles
● “1” to “0”, max.	20 ms; 1 AC cycle
Parallel switching of two outputs
● for logic links	No
● for uprating	No
● for redundant control of a load	Yes
Switching frequency
● with resistive load, max.	10 Hz; Applies to DQ mode; limited by line frequency in PC mode
● with inductive load (acc. to IEC 60947-5-1, AC15), max.	10 Hz; Applies to DQ mode; limited by line frequency in PC mode
● on lamp load, max.	1 Hz; Applies to DQ mode; limited by line frequency in PC mode
Total current of the outputs
● Current per channel, max.	2 A; Max. 4 A, see additional description in manual
● Current per module, max.	8 A
Total current of the outputs (per module)
horizontal installation
— up to 40 °C, max.	8 A
— up to 50 °C, max.	6 A
— up to 60 °C, max.	4 A
vertical installation
— up to 30 °C, max.	8 A
— up to 40 °C, max.	6 A
— up to 50 °C, max.	4 A
Cable length
● shielded, max.	1 000 m
● unshielded, max.	600 m
Interrupts/diagnostics/status information
Diagnostics function	Yes
Substitute values connectable	Yes
Alarms
● Diagnostic alarm	Yes
Diagnoses
● Diagnostic information readable	Yes
● Monitoring the supply voltage	Yes
● Wire-break	Yes; channel by channel
● Short-circuit	No
● Group error	Yes
Diagnostics indication LED
● Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
● Channel status display	Yes; green LED
● for channel diagnostics	Yes; red Fn LED
● for module diagnostics	Yes; green/red DIAG LED
Potential separation
Potential separation channels
● between the channels	No
● between the channels and backplane bus	Yes
● between the channels and the power supply of the electronics	No
Isolation
Isolation tested with	2 545 V DC/2 s (routine test)
Standards, approvals, certificates
Suitable for safety functions	No
Ambient conditions
Ambient temperature during operation
● horizontal installation, min.	-30 °C
● horizontal installation, max.	60 °C
● vertical installation, min.	-30 °C
● vertical installation, max.	50 °C
Altitude during operation relating to sea level
● Installation altitude above sea level, max.	2 000 m; On request: Installation altitudes greater than 2 000 m
Dimensions
Width	20 mm
Height	73 mm
Depth	58 mm
Weights
Weight, approx.	50 g
