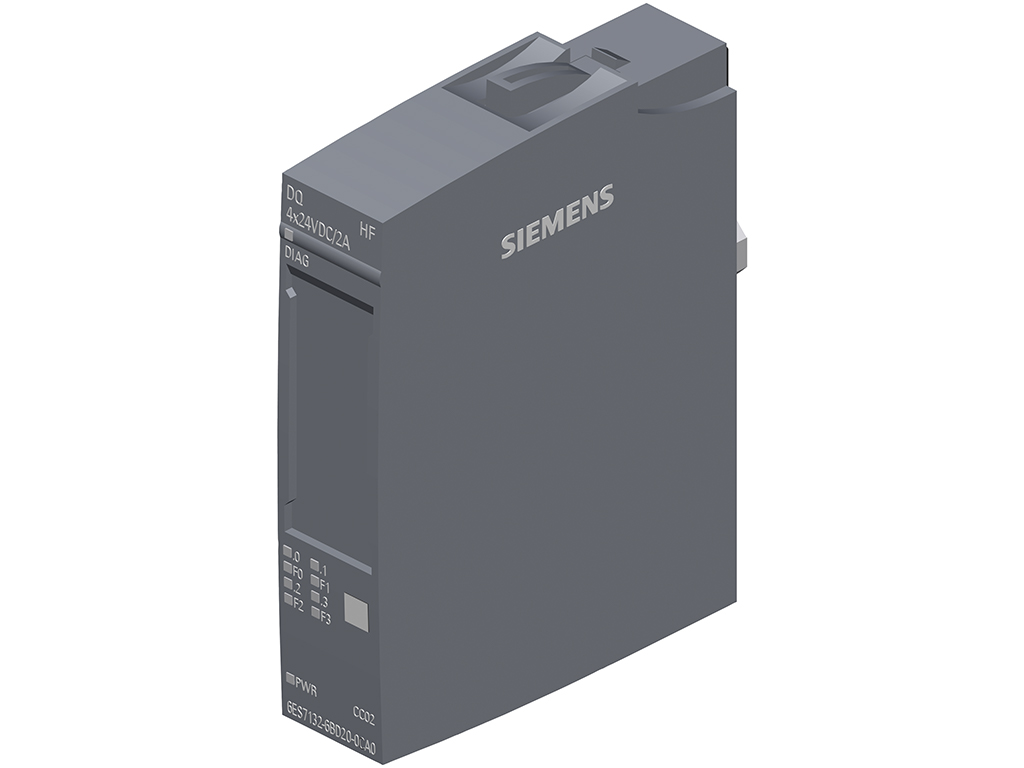

SIMATIC ET 200SP, digital output module, DQ 4x 24VDC/2A High Feature, suitable for BU type A0, Color code CC02, channel diagnostics
6ES7132-6BD20-0CA0 là module mở rộng đầu ra số (digital output module) cho CPU ET200SP được hãng SIEMENS sản xuất & phát triển với thương hiệu SIMATIC. DQ 4×24 VDC/2A HF SIMATIC ET 200SP 6ES7132-6BD20-0CA0 được SIEMENSIM phát triển và phân phối rộng rãi trên thị trường Việt Nam. Nếu quý khách hàng đang có nhu cầu cần tư vấn, báo giá hay mua 6ES7132-6BD20-0CA0 thì hãy liên hệ Siemens Industry Mall để được hỗ trợ một cách tận tâm, nhanh chóng và hiệu quả nhé.
Mục lục
Tóm tắt thông số kỹ thuật 6ES7132-6BD20-0CA0
| Mã sản phẩm | 6ES7132-6BD20-0CA0 |
| Dòng sản phẩm | SIMATIC ET 200SP, DQ 4x DC 24 V/2 A HF |
| Hãng sản xuất | SIEMENS |
| Số lượng đầu ra số | DQ 4x 24VDC/2A |
| Nguồn cung cấp | 24 V DC (19.2 – 28.8 V DC) |
| Kích thước (RxCxS) | 15 x 73 x 58 mm |
| Trọng lượng | 30 g |
Chi tiết thông số kỹ thuật 6ES7132-6BD20-0CA0
Tải về datasheet (pdf): Tại đây!
| General information | |
| Product type designation | DQ 4x DC 24 V/2 A HF |
| HW functional status | From FS06 |
| Firmware version | |
| ● FW update possible | Yes |
| usable BaseUnits | BU type A0 |
| Color code for module-specific color identification plate | CC02 |
| Product function | |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Isochronous mode | Yes |
| Engineering with | |
| ● STEP 7 TIA Portal configurable/integrated from version | V13 SP1 / – |
| ● STEP 7 configurable/integrated from version | V5.5 / – |
| ● PROFIBUS from GSD version/GSD revision | GSD Revision 5 |
| ● PROFINET from GSD version/GSD revision | GSDML V2.3 |
| Operating mode | |
| ● DQ | Yes |
| ● DQ with energy-saving function | No |
| ● PWM | No |
| ● Oversampling | No |
| ● MSO | Yes |
| Supply voltage | |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Output voltage | |
| Rated value (DC) | 24 V |
| Power loss | |
| Power loss, typ. | 1 W |
| Address area | |
| Address space per module | |
| ● Address space per module, max. | 4 byte; 2 channels per submodule + QI information |
| Hardware configuration | |
| Automatic encoding | Yes |
| ● Mechanical coding element | Yes |
| ● Type of mechanical coding element | Type A |
| Selection of BaseUnit for connection variants | |
| ● 1-wire connection | BU type A0 |
| ● 2-wire connection | BU type A0 |
| ● 3-wire connection | BU type A0 with AUX terminals or potential distributor module |
| ● 4-wire connection | BU type A0 + Potential distributor module |
| Digital outputs | |
| Type of digital output | Source output (PNP, current-sourcing) |
| Number of digital outputs | 4 |
| Current-sinking | No |
| Current-sourcing | Yes |
| Digital outputs, parameterizable | Yes |
| Short-circuit protection | Yes |
| ● Response threshold, typ. | 2.8 to 5.2 A |
| Limitation of inductive shutdown voltage to | L+ -(37 to 41V) |
| Controlling a digital input | Yes; Minimum current consumption 7 mA |
| Switching capacity of the outputs | |
| ● with resistive load, max. | 2 A |
| ● on lamp load, max. | 10 W |
| Load resistance range | |
| ● lower limit | 12 Ω |
| ● upper limit | 3 400 Ω |
| Output current | |
| ● for signal “1” rated value | 2 A |
| ● for signal “0” residual current, max. | 0.1 mA |
| Output delay with resistive load | |
| ● “0” to “1”, typ. | 50 µs |
| ● “1” to “0”, typ. | 100 µs |
| Parallel switching of two outputs | |
| ● for uprating | No |
| Switching frequency | |
| ● with resistive load, max. | 100 Hz |
| ● with inductive load, max. | 2 Hz |
| ● on lamp load, max. | 10 Hz |
| Total current of the outputs | |
| ● Current per channel, max. | 2 A |
| ● Current per module, max. | 8 A |
| Total current of the outputs (per module) | |
| horizontal installation | |
| — up to 40 °C, max. | 8 A |
| — up to 50 °C, max. | 6 A |
| — up to 60 °C, max. | 4 A |
| vertical installation | |
| — up to 30 °C, max. | 8 A |
| — up to 40 °C, max. | 6 A |
| — up to 50 °C, max. | 4 A |
| Cable length | |
| ● shielded, max. | 1 000 m |
| ● unshielded, max. | 600 m |
| Isochronous mode | |
| Bus cycle time (TDP), min. | 500 µs |
| Jitter, max. | 8 µs |
| Interrupts/diagnostics/status information | |
| Diagnostics function | Yes |
| Substitute values connectable | Yes |
| Alarms | |
| ● Diagnostic alarm | Yes |
| Diagnoses | |
| ● Monitoring the supply voltage | Yes |
| ● Wire-break | Yes; channel by channel |
| ● Short-circuit | Yes; channel by channel |
| ● Group error | Yes |
| Diagnostics indication LED | |
| ● Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| ● Channel status display | Yes; green LED |
| ● for channel diagnostics | Yes; red LED |
| ● for module diagnostics | Yes; green/red DIAG LED |
| Potential separation | |
| Potential separation channels | |
| ● between the channels | No |
| ● between the channels and backplane bus | Yes |
| Isolation | |
| Isolation tested with | 707 V DC (type test) |
| Standards, approvals, certificates | |
| Suitable for safety functions | No |
| Suitable for safety-related tripping of standard modules | Yes |
| Highest safety class achievable in safety mode | |
| ● Performance level according to ISO 13849-1 | PL d |
| ● SIL acc. to IEC 61508 | SIL 2 |
| Ambient conditions | |
| Ambient temperature during operation | |
| ● horizontal installation, min. | -30 °C; < 0 °C as of FS06 |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -30 °C; < 0 °C as of FS06 |
| ● vertical installation, max. | 50 °C |
| Altitude during operation relating to sea level | |
| ● Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Dimensions | |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weights | |
| Weight, approx. | 30 g |
