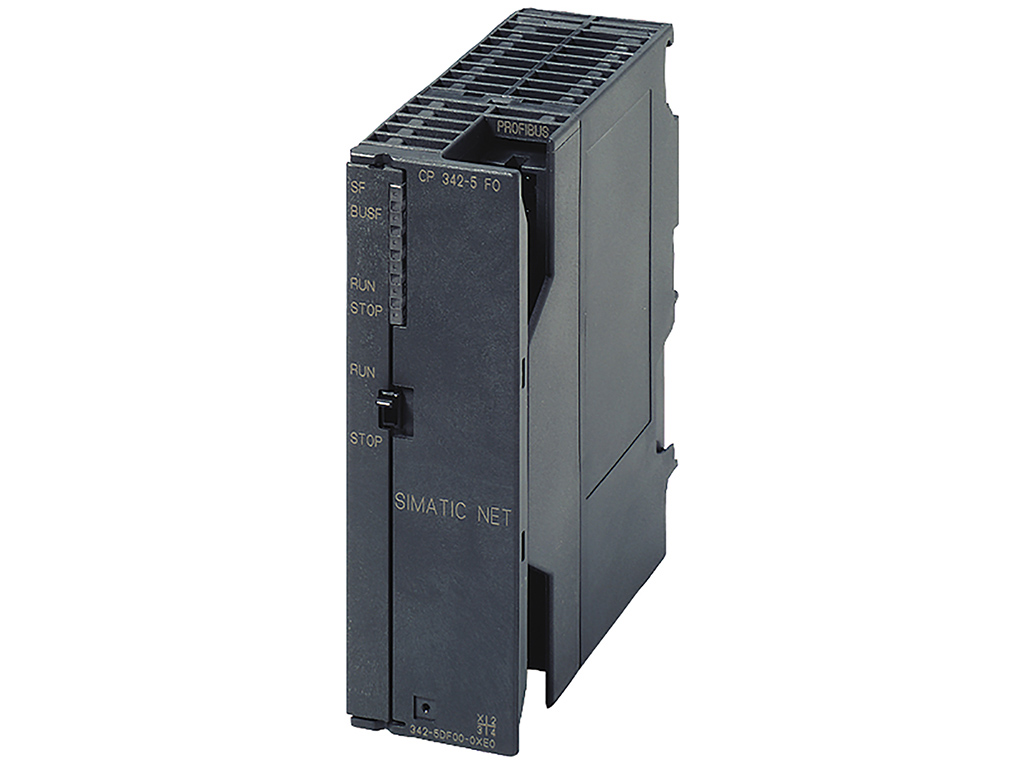

Communications processor CP 342-5 FO for connection of SIMATIC S7-300 to PROFIBUS DP, S5-compatible, PG/OP and S7 communication

6GK7342-5DF00-0XE0 là mô đun mở rộng truyền thông cho PLC S7-300 (CPU) do hãng SIEMENS phát triển & sản xuất với thương hiệu SIMATIC thuộc họ S7-300. CP 342-5 FO PROFIBUS DP SIMATIC NET 6GK7342-5DF00-0XE0 được SIEMENSIM.COM phát triển và phân phối rộng rãi trên thị trường Việt Nam. Nếu quý khách hàng đang có nhu cầu cần tư vấn hay mua 6GK7342-5DF00-0XE0 thì hãy liên hệ SIEMENS INDUSTRY MALL để được hỗ trợ một cách tận tâm, nhanh chóng và hiệu quả nhé.

Mục lục

Tóm tắt thông số kỹ thuật 6GK7342-5DF00-0XE0

Mã sản phẩm	6GK7342-5DF00-0XE0
Dòng sản phẩm	SIMATIC S7-300, CP 342-5 FO
Hãng sản xuất	SIEMENS
Truyền thông	PROFIBUS 9.6 kbit/s … 12 Mbit/s
Nguồn cung cấp	Nguồn ngoài: 24 VDC Nguồn từ backplane bus: 5 VDC
Kích thước (RxCxS)	40x125x120 mm
Trọng lượng	300 g

Chi tiết thông số kỹ thuật 6GK7342-5DF00-0XE0

Tải về datasheet (pdf): Tại đây!

transfer rate
transfer rate
● at the 1st interface / acc. to PROFIBUS	9.6 kbit/s … 12 Mbit/s
interfaces
number of interfaces / acc. to Industrial Ethernet	0
number of electrical connections
● for power supply	1
number of optical interfaces / at the 1st interface / acc. to PROFIBUS	2
design of the optical interface / at the 1st interface / acc. to PROFIBUS	Duplex socket
type of electrical connection
● for power supply	4-pole terminal block
supply voltage, current consumption, power loss
type of voltage / of the supply voltage	DC
supply voltage / 1 / from backplane bus	5 V
supply voltage	24 V
supply voltage / external	24 V
supply voltage / external / at DC / rated value	24 V
relative positive tolerance / at DC / at 24 V	20 %
relative negative tolerance / at DC / at 24 V	15 %
consumed current
● from backplane bus / at DC / at 5 V / typical	0.15 A
● from external supply voltage / at DC / at 24 V / typical	0.25 A
power loss [W]	6 W
ambient conditions
ambient temperature
● during operation	0 … 60 °C
● during storage	-40 … +70 °C
● during transport	-40 … +70 °C
relative humidity
● at 25 °C / without condensation / during operation / maximum	95 %
protection class IP	IP20
design, dimensions and weights
module format	Compact module
width	40 mm
height	125 mm
depth	120 mm
net weight	0.3 kg
fastening method
● S7-300 rail mounting	Yes
product features, product functions, product components / general
number of units
● per CPU / maximum	4
wire length
● for PCF FOC / maximum	300 m
● for POF FOC / maximum	50 m
performance data / open communication
number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum	16
data volume
● as user data per connection / for open communication / by means of SEND/RECEIVE blocks / maximum	240 byte
performance data / PROFIBUS DP
service / as DP master
● DPV0	Yes
number of DP slaves
● on DP master / operable	124
data volume
● of the address range of the inputs / as DP master / total	2160 byte
● of the address range of the outputs / as DP master / total	2160 byte
● of the address range of the inputs / per DP slave	244 byte
● of the address range of the outputs / per DP slave	244 byte
● of the address range of the diagnostic data / per DP slave	240 byte
service / as DP slave
● DPV0	Yes
data volume
● of the address range of the inputs / as DP slave / total	240 byte
● of the address range of the outputs / as DP slave / total	240 byte
performance data / S7 communication
number of possible connections / for S7 communication
● maximum	16
performance data / multi-protocol mode
number of active connections / with multi-protocol mode
● without DP / maximum	32
● with DP / maximum	28
performance data / telecontrol
protocol / is supported
● TCP/IP	No
product functions / management, configuration, engineering
configuration software
● required	STEP 7 V5.1 SP2 or higher / STEP 7 Professional V12 (TIA Portal) or higher
standards, specifications, approvals / hazardous environments
certificate of suitability / CCC / for hazardous zone according to GB standard	Yes
