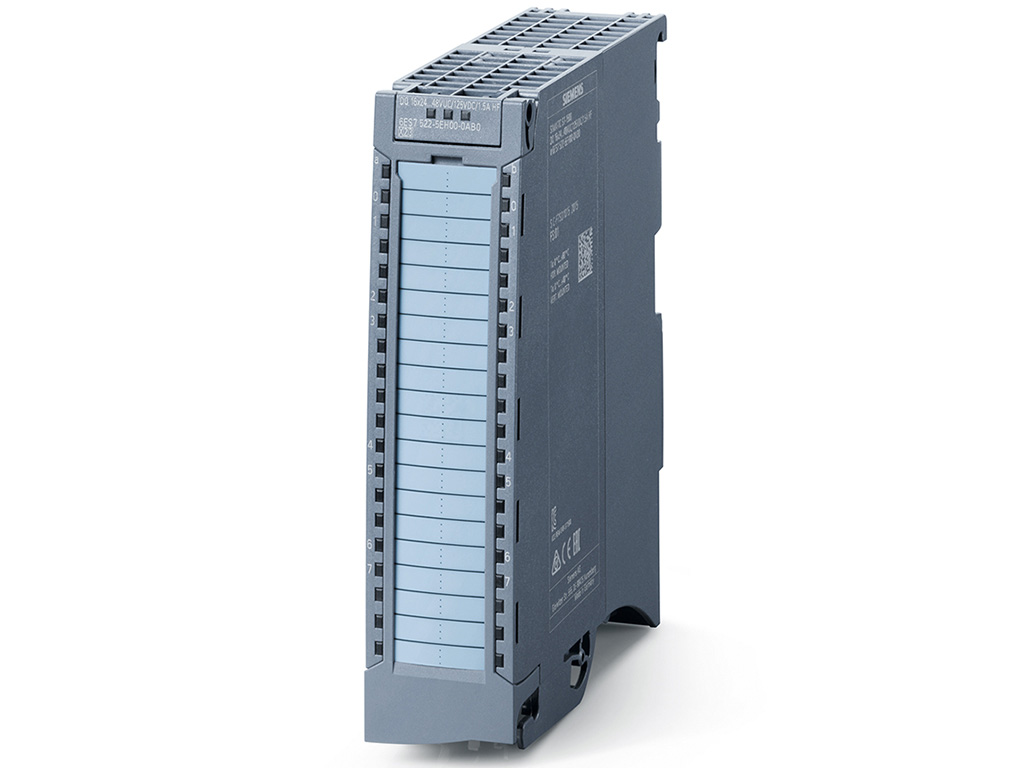

SIMATIC S7-1500, digital output module DQ 16×24..48VUC/125V DC/0.5A ST; 16 channels in groups of 1; 0.5 A per group; substitute value: observe derating the module supports the safety-oriented shutdown of load groups up to SILCL2 acc. to EN 62061:2005 + A2:2015, and Category 3 / PL d according to EN ISO 13849-1:2015. front connector (screw terminals or push-in) to be ordered separately
6ES7522-5EH00-0AB0 là mô đun mở rộng tín hiệu ngõ ra số cho PLC S7-1500 (CPU) do hãng SIEMENS phát triển & sản xuất với thương hiệu SIMATIC thuộc họ S7-1500. SM 522 DQ 16×24..48VUC/125V DC/0.5A ST 6ES7522-5EH00-0AB0 được SIEMENSIM.COM phát triển và phân phối rộng rãi trên thị trường Việt Nam. Nếu quý khách hàng đang có nhu cầu cần tư vấn hay mua 6ES7522-5EH00-0AB0 thì hãy liên hệ SIEMENS INDUSTRY MALL để được hỗ trợ một cách tận tâm, nhanh chóng và hiệu quả nhé.
Mục lục
Tóm tắt thông số kỹ thuật 6ES7522-5EH00-0AB0
| Mã sản phẩm | 6ES7522-5EH00-0AB0 |
| Dòng sản phẩm | SIMATIC S7-1500, SM 522 |
| Hãng sản xuất | SIEMENS |
| Số lượng đầu ra số | 16 DQ 24..48VUC/125V DC/0.5A ST |
| Kích thước (RxCxS) | 35x147x129 mm |
| Trọng lượng | 230 g |
Chi tiết thông số kỹ thuật 6ES7522-5EH00-0AB0
Tải về datasheet (pdf): Tại đây!
| General information | |
| Product type designation | DQ 16×24 … 48 V UC/125 V DC/0.5 A ST |
| HW functional status | FS02 |
| Firmware version | V1.0.0 |
| ● FW update possible | Yes |
| Product function | |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Isochronous mode | No |
| ● Prioritized startup | Yes |
| Engineering with | |
| ● STEP 7 TIA Portal configurable/integrated from version | V13 SP1 / – |
| ● STEP 7 configurable/integrated from version | V5.5 SP3 / – |
| ● PROFIBUS from GSD version/GSD revision | V1.0 / V5.1 |
| ● PROFINET from GSD version/GSD revision | V2.3 / – |
| Operating mode | |
| ● DQ | Yes |
| ● DQ with energy-saving function | No |
| ● PWM | No |
| ● Cam control (switching at comparison values) | No |
| ● Oversampling | No |
| ● MSO | Yes |
| ● Integrated operating cycle counter | No |
| Output voltage | |
| Rated value (DC) | 24 V; 48 V, 125 V |
| Rated value (AC) | 24 V; 48 V (50 – 60 Hz) |
| Power | |
| Power available from the backplane bus | 2 W |
| Power loss | |
| Power loss, typ. | 3.8 W |
| Digital outputs | |
| Type of digital output | Transistor |
| Number of digital outputs | 16 |
| Current-sinking | Yes |
| Current-sourcing | Yes |
| Digital outputs, parameterizable | Yes |
| Limitation of inductive shutdown voltage to | 200 V (suppressor diode) |
| Controlling a digital input | Yes |
| Switching capacity of the outputs | |
| ● with resistive load, max. | 0.5 A |
| ● on lamp load, max. | 40 W; At 125 V DC, 10 W at 48 V UC, 5 W at 24 V UC |
| Output voltage | |
| ● for signal “1”, min. | L+ (-1.0 V) |
| Output current | |
| ● for signal “1” rated value | 0.5 A |
| ● for signal “1” permissible range, max. | 0.6 A |
| Output delay with resistive load | |
| ● “0” to “1”, max. | 5 ms |
| ● “1” to “0”, max. | 5 ms |
| Parallel switching of two outputs | |
| ● for logic links | Yes |
| ● for uprating | No |
| ● for redundant control of a load | Yes |
| Switching frequency | |
| ● with resistive load, max. | 25 Hz |
| ● with inductive load, max. | 0.5 Hz |
| ● on lamp load, max. | 10 Hz |
| Total current of the outputs | |
| ● Current per channel, max. | 0.5 A |
| ● Current per group, max. | 0.5 A |
| ● Current per module, max. | 8 A |
| Cable length | |
| ● shielded, max. | 1 000 m |
| ● unshielded, max. | 600 m |
| Interrupts/diagnostics/status information | |
| Diagnostics function | No |
| Substitute values connectable | Yes |
| Alarms | |
| ● Diagnostic alarm | No |
| ● Maintenance interrupt | No |
| Diagnoses | |
| ● Monitoring the supply voltage | No |
| ● Wire-break | No |
| ● Short-circuit | No |
| Diagnostics indication LED | |
| ● RUN LED | Yes; green LED |
| ● ERROR LED | Yes; red LED |
| ● Monitoring of the supply voltage (PWR-LED) | No |
| ● Channel status display | Yes; green LED |
| ● for channel diagnostics | No |
| ● for module diagnostics | Yes; red LED |
| Potential separation | |
| Potential separation channels | |
| ● between the channels | Yes |
| ● between the channels, in groups of | 1 |
| ● between the channels and backplane bus | Yes |
| Permissible potential difference | |
| between different circuits | 125 V DC/48 V AC |
| Isolation | |
| Isolation tested with | 2 000 V DC |
| Standards, approvals, certificates | |
| Suitable for safety functions | No |
| Suitable for safety-related tripping of standard modules | Yes; From FS02 |
| Highest safety class achievable for safety-related tripping of standard modules | |
| ● Performance level according to ISO 13849-1 | PL d |
| ● Category according to ISO 13849-1 | Cat. 3 |
| ● SILCL according to IEC 62061 | SILCL 2 |
| Ambient conditions | |
| Ambient temperature during operation | |
| ● horizontal installation, min. | 0 °C |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | 0 °C |
| ● vertical installation, max. | 40 °C |
| Dimensions | |
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weights | |
| Weight, approx. | 230 g |
