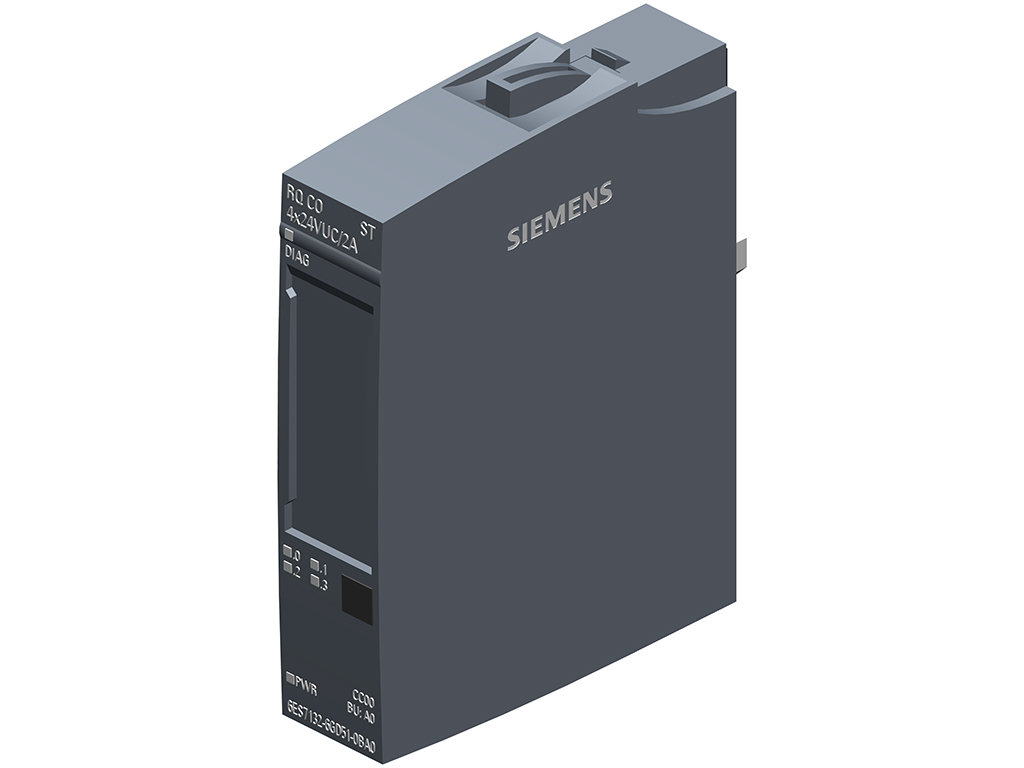

SIMATIC ET 200SP, Signal relay module, RQ CO 4x 24V DC/2A ST, 4 changeover contacts, isolated contacts, packing unit: 1 piece, fits to BU-type A0, Colour Code CC00, substitute value output, module diagnostics for: supply voltage
6ES7132-6GD51-0BA0 là module mở rộng đầu ra số (digital output module) cho CPU ET200SP được hãng SIEMENS sản xuất & phát triển với thương hiệu SIMATIC. RQ CO 4×24 VDC/2A ST SIMATIC ET 200SP 6ES7132-6GD51-0BA0 được SIEMENSIM phát triển và phân phối rộng rãi trên thị trường Việt Nam. Nếu quý khách hàng đang có nhu cầu cần tư vấn, báo giá hay mua 6ES7132-6GD51-0BA0 thì hãy liên hệ Siemens Industry Mall để được hỗ trợ một cách tận tâm, nhanh chóng và hiệu quả nhé.
Mục lục
Tóm tắt thông số kỹ thuật 6ES7132-6GD51-0BA0
| Mã sản phẩm | 6ES7132-6GD51-0BA0 |
| Dòng sản phẩm | SIMATIC ET 200SP, RQ CO 4x24VDC/2A ST |
| Hãng sản xuất | SIEMENS |
| Số lượng đầu ra số | RQ CO 4x 24V DC/2A ST |
| Nguồn cung cấp | 24 V DC (19.2 – 28.8 V DC) |
| Kích thước (RxCxS) | 15 x 73 x 58 mm |
| Trọng lượng | 30 g |
Chi tiết thông số kỹ thuật 6ES7132-6GD51-0BA0
Tải về datasheet (pdf): Tại đây!
| General information | |
| Product type designation | RQ CO 4x24VDC/2A ST |
| HW functional status | From FS02 |
| Firmware version | V0.0 |
| ● FW update possible | No |
| usable BaseUnits | BU type A0 |
| Color code for module-specific color identification plate | CC00 |
| Product function | |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Isochronous mode | No |
| Engineering with | |
| ● STEP 7 TIA Portal configurable/integrated from version | V14 |
| ● STEP 7 configurable/integrated from version | V5.5 SP3 |
| ● PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| ● PROFINET from GSD version/GSD revision | GSDML V2.3 |
| Operating mode | |
| ● DQ | Yes |
| ● DQ with energy-saving function | No |
| ● PWM | No |
| ● Oversampling | No |
| ● MSO | No |
| Redundancy | |
| ● Redundancy capability | Yes |
| Supply voltage | |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Input current | |
| Current consumption (rated value) | 50 mA |
| Power loss | |
| Power loss, typ. | 1.2 W |
| Address area | |
| Address space per module | |
| ● Inputs | + 1 byte for QI information |
| ● Outputs | 1 byte |
| Hardware configuration | |
| Automatic encoding | Yes |
| ● Mechanical coding element | Yes |
| Digital outputs | |
| Type of digital output | Relays |
| Number of digital outputs | 4 |
| Current-sinking | Yes |
| Current-sourcing | Yes |
| Digital outputs, parameterizable | Yes |
| Short-circuit protection | No |
| Parallel switching of two outputs | |
| ● for logic links | Yes |
| ● for uprating | No |
| ● for redundant control of a load | Yes |
| Switching frequency | |
| ● with resistive load, max. | 2 Hz |
| Total current of the outputs | |
| ● Current per channel, max. | 2 A |
| ● Current per module, max. | 8 A |
| Total current of the outputs (per module) | |
| horizontal installation | |
| — up to 40 °C, max. | 8 A |
| — up to 50 °C, max. | 6 A |
| — up to 60 °C, max. | 4 A |
| vertical installation | |
| — up to 30 °C, max. | 8 A |
| — up to 40 °C, max. | 6 A |
| — up to 50 °C, max. | 4 A |
| Relay outputs | |
| ● Number of relay outputs | 4 |
| ● Rated supply voltage of relay coil L+ (DC) | 24 V |
| ● Current consumption of relays (coil current of all relays), max. | 40 mA |
| Switching capacity of contacts | |
| — with resistive load, max. | 2 A |
| — Thermal continuous current, max. | 2 A |
| — Switching current, min. | 1 mA; 5 V DC |
| — Rated switching voltage (DC) | 24 V |
| — Rated switching voltage (AC) | 24 V |
| Cable length | |
| ● shielded, max. | 1 000 m |
| ● unshielded, max. | 200 m |
| Interrupts/diagnostics/status information | |
| Diagnostics function | Yes |
| Substitute values connectable | Yes |
| Alarms | |
| ● Diagnostic alarm | Yes |
| Diagnoses | |
| ● Monitoring the supply voltage | Yes |
| ● Wire-break | No |
| ● Short-circuit | No |
| Diagnostics indication LED | |
| ● Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| ● Channel status display | Yes; green LED |
| ● for channel diagnostics | No |
| ● for module diagnostics | Yes; green/red DIAG LED |
| Potential separation | |
| Potential separation channels | |
| ● between the channels | Yes |
| ● between the channels and backplane bus | Yes |
| ● between the channels and the power supply of the electronics | Yes |
| Isolation | |
| Isolation tested with | 707 V DC (type test) |
| Standards, approvals, certificates | |
| Suitable for safety functions | No |
| Ambient conditions | |
| Ambient temperature during operation | |
| ● horizontal installation, min. | -30 °C |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -30 °C |
| ● vertical installation, max. | 50 °C |
| Altitude during operation relating to sea level | |
| ● Installation altitude above sea level, max. | 2 000 m; On request: Installation altitudes greater than 2 000 m |
| Dimensions | |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weights | |
| Weight, approx. | 30 g |
