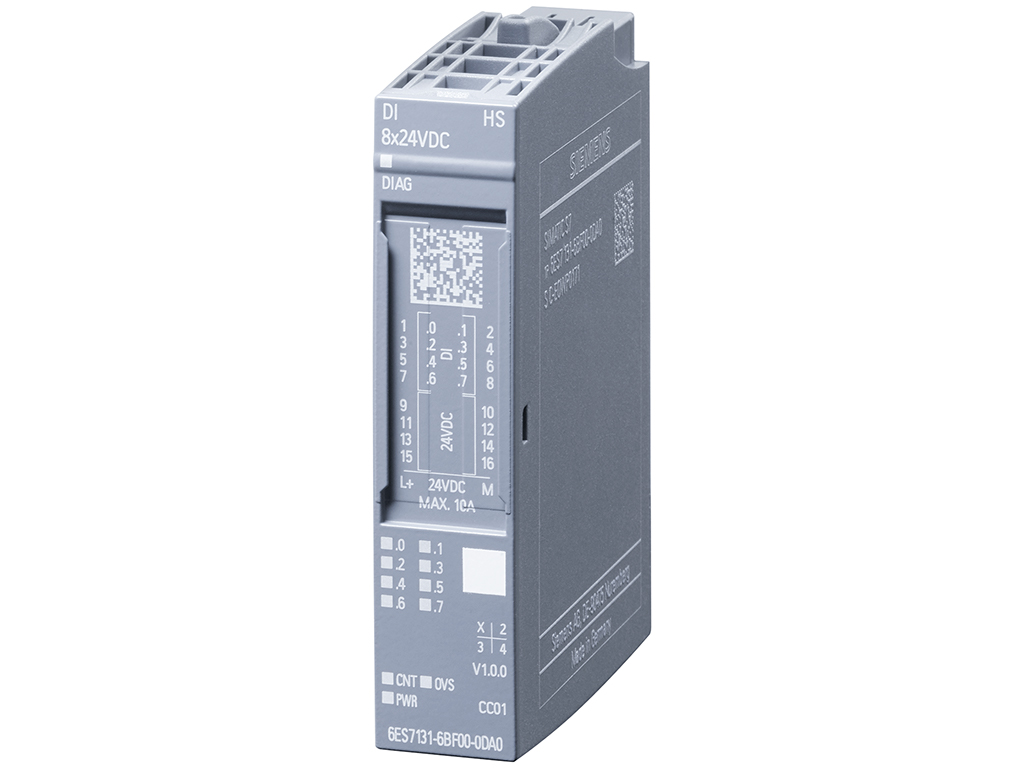

SIMATIC ET 200SP, digital input module, DI 8x 24 V DC High Speed, Pack quantity: 1 unit, three alternative operating modes: DI, Oversampling, 4x counters, suitable for BU type A0, Color code CC01
6ES7131-6BF00-0DA0 là module mở rộng đầu vào số (digital input module) cho ET 200SP (CPU) được hãng SIEMENS sản xuất & phát triển với thương hiệu SIMATIC. DI 8×24 VDC HS SIMATIC ET 200SP 6ES7131-6BF00-0DA0 được SIEMENSIM phát triển và phân phối rộng rãi trên thị trường Việt Nam. Nếu quý khách hàng đang có nhu cầu cần tư vấn, báo giá hay mua 6ES7131-6BF00-0DA0 thì hãy liên hệ Siemens Industry Mall để được hỗ trợ một cách tận tâm, nhanh chóng và hiệu quả nhé.
Mục lục
Tóm tắt thông số kỹ thuật 6ES7131-6BF00-0DA0
| Mã sản phẩm | 6ES7131-6BF00-0DA0 |
| Dòng sản phẩm | SIMATIC ET 200SP, DI 8×24 V DC HS |
| Hãng sản xuất | SIEMENS |
| Số lượng đầu vào số | DI 8x 24 V DC High Feature |
| Nguồn cung cấp | 24 V DC (19.2 – 28.8 V DC) |
| Kích thước (RxCxS) | 15 x 73 x 58 mm |
| Trọng lượng | 28 g |
Chi tiết thông số kỹ thuật 6ES7131-6BF00-0DA0
Tải về datasheet (pdf): Tại đây!
| General information | |
| Product type designation | DI 8×24 V DC HS |
| HW functional status | from FS04 |
| Firmware version | V1.0.2 |
| ● FW update possible | Yes |
| usable BaseUnits | BU type A0 |
| Color code for module-specific color identification plate | CC01 |
| Product function | |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Isochronous mode | Yes |
| Engineering with | |
| ● STEP 7 TIA Portal configurable/integrated from version | V13 SP1 |
| ● STEP 7 configurable/integrated from version | V5.5 SP3 / – |
| ● PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| ● PROFINET from GSD version/GSD revision | GSDML V2.3 |
| Operating mode | |
| ● DI | Yes |
| ● Counter | Yes |
| ● Oversampling | Yes |
| ● MSI | No |
| Supply voltage | |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Input current | |
| Current consumption, max. | 70 mA; without sensor supply |
| Encoder supply | |
| 24 V encoder supply | |
| ● 24 V | Yes |
| ● Short-circuit protection | Yes; per module, electronic |
| ● Output current, max. | 700 mA |
| Power loss | |
| Power loss, typ. | 1.5 W |
| Address area | |
| Address space per module | |
| ● Address space per module, max. | 45 byte |
| ● Inputs | 32 byte; 1 byte + 1 byte for QI information in DI mode; 32 bytes in Oversampling mode; 25 bytes in Counter mode |
| ● Outputs | 20 byte; In count mode |
| Hardware configuration | |
| Automatic encoding | Yes |
| ● Mechanical coding element | Yes |
| ● Type of mechanical coding element | Type A |
| Selection of BaseUnit for connection variants | |
| ● 1-wire connection | BU type A0 |
| ● 2-wire connection | BU type A0 |
| ● 3-wire connection | BU type A0 with AUX terminals |
| ● 4-wire connection | BU type A0 + external terminals |
| Digital inputs | |
| Number of digital inputs | 8 |
| Source/sink input | P-reading |
| Pulse extension | Yes |
| ● Length | 2 s; 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s |
| Digital input functions, parameterizable | |
| ● Gate start/stop | Yes |
| ● Freely usable digital input | Yes |
| ● Counter | Yes |
| — Number, max. | 4 |
| — Counting frequency, max. | 10 kHz |
| — Counting width | 32 bit |
| — Counting direction up/down | Yes |
| ● Digital input with oversampling | Yes |
| — Number, max. | 8 |
| — Values per cycle, max. | 32 |
| — Resolution, min. | 7.8125 µs |
| Input voltage | |
| ● Rated value (DC) | 24 V |
| ● for signal “0” | -30 to +5 V |
| ● for signal “1” | +11 to +30V |
| Input current | |
| ● for signal “1”, typ. | 6 mA |
| Input delay (for rated value of input voltage) | |
| for standard inputs | |
| — parameterizable | Yes; none / 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms |
| for interrupt inputs | |
| — parameterizable | Yes |
| for technological functions | |
| — parameterizable | Yes |
| Cable length | |
| ● shielded, max. | 50 m |
| ● unshielded, max. | 50 m |
| Encoder | |
| Connectable encoders | |
| ● 2-wire sensor | Yes |
| — permissible quiescent current (2-wire sensor), max. | 1.5 mA |
| Isochronous mode | |
| Bus cycle time (TDP), min. | 125 µs |
| Jitter, max. | 5 µs |
| Interrupts/diagnostics/status information | |
| Diagnostics function | Yes |
| Alarms | |
| ● Diagnostic alarm | Yes |
| ● Hardware interrupt | Yes |
| Diagnoses | |
| ● Diagnostic information readable | Yes |
| ● Monitoring the supply voltage | Yes |
| — parameterizable | Yes |
| ● Monitoring of encoder power supply | Yes; Module-wise |
| ● Wire-break | No |
| ● Short-circuit | Yes; Module-wise |
| Diagnostics indication LED | |
| ● Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| ● Channel status display | Yes; green LED |
| ● for channel diagnostics | No |
| ● for module diagnostics | Yes; green/red DIAG LED |
| Potential separation | |
| Potential separation channels | |
| ● between the channels | No |
| ● between the channels and backplane bus | Yes |
| ● between the channels and the power supply of the electronics | No |
| Isolation | |
| Isolation tested with | 707 V DC (type test) |
| Standards, approvals, certificates | |
| Suitable for safety functions | No |
| Ambient conditions | |
| Ambient temperature during operation | |
| ● horizontal installation, min. | -30 °C; < 0 °C as of FS04 |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -30 °C; < 0 °C as of FS04 |
| ● vertical installation, max. | 50 °C |
| Altitude during operation relating to sea level | |
| ● Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Dimensions | |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weights | |
| Weight, approx. | 28 g |
